200A Hand Arc Welding Machine with 2KW DC Power Supply

Ask Lasest Price
Brand Name :	RDC
Model Number :	RDC2000I/2000IE
Certification :	CE,EPA
Price :	332-420 usd/set
Payment Terms :	D/A,D/P,T/T,Western Union
Supply Ability :	1000 set/moth
Delivery Time :	5-15 days

Add to Cart

Product Details
Company Profile

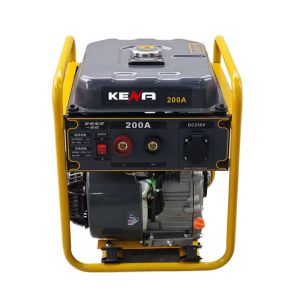

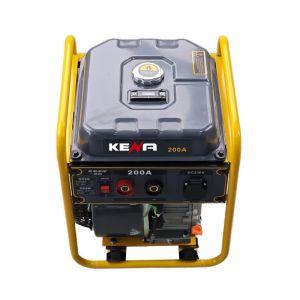

200A Hand Arc Welding Machine with 2KW DC Power Supply

Hand Arc Welding Machine Continuous Duty Welding Equipment

The gasoline electric welding generator solves the problem of no power supply on the construction site.
The device adopts a 170 type engine, and its motor is made of rare earth permanent magnet material Nd-Fe-B. The overall design is compact and lightweight.
Within the current range of 160A, electrodes measuring 3.2mm in length and 4.0mm in length can be welded. If higher current is required, larger models can be chosen.
In addition, the equipment panel is equipped with a 2KW, DC220V small power supply, which supports supplying power to devices such as carbon brush power tools and incandescent lamps.
asoline electric welding power generation machine solves the problem that there is no power supply for field electric welding.

170engine motor is made of rare earth permanent magnet material Nd-Fe-B. the whole machines is small and light.

It can weld 3.2mm long and 4.0mm short electrodes within the current range of 160A. If you want more current, you can choose a larger model.

In addition, the panel os equipped with 2KW, DC220V small power supply, and the output can be carbon brush electric tools,

incandescent lighting. Note: inductive loads (such as transformers, fans, AC motors, household appliances. etc.) are not allowed.

Model Parameters	KN4500-200A
Current Regulation Range	200A
No-load Voltage	70-75V
Operating Voltage	22-28V
Welding Method	Hand Arc Welding
Load Persistence Rate	0.6
Electrode Range (Φ)	2.5-4.0
Output Voltage	120V/220V/240V
Output Power	DC1kW
Working Status	Continuous
Starting System	240cc
Ignition Method	Inductive discharge type
Displacement	Recoil
G.W.	24kg
Package Size	395380470mm

200A Hand Arc Welding Machine with 2KW DC Power Supply
